Parts look-up

We can help you find the part or parts that you need.

Links to look-up for parts …

– Find the year for your OMC, Johnson/Evinrude®,
Viking/Eaton OB, Mercury OB, and Mercruiser I/O …
Also find what spark plug your outboard needs …



Click on picture to link


– Find Tohatsu®
parts needed …
Click on the picture

– Find Mercruiser
/Mercury®
parts needed …
Click on picture to link

– Find Yamaha®
parts needed …
Click on picture to link

– Find Suzuki®
parts needed …
Click on picture to link

– Find Polaris®
parts needed …
Click on picture to link

– Find Honda®
parts needed …


Click on picture to link



After Market Parts
Parts & Accessories

Marine catalogs


We deal in quality Johnson/Evinrude Bombardier parts.

– OMC, Johnson/Evinrude® (Bombardier) Parts Catalog …

New – Also look up SeaDoo®, SkiDoo®, Lynx®, ATV® Parts Catalog …

Johnson, Evinrude & OMC Parts and Diagrams

Click on the picture below to view OMC, Johnson, and Evinrude parts diagrams. This will open up another page with Bombardier’s electronic parts catalog as well as a form to enter part numbers.    Once you find the part numbers you need you can contact us to find prices and availability.  Bombardiers electronic parts catalog has parts diagrams and breakdowns with exploded views of OMC parts, Evinrude outboard parts, and Johnson outboard parts. Included below we have parts catalogs for the rare OMC Sea Drive and OMC Sail drive.

For old service manual contact;   Ken Cook Co.

Please note:  If another window does not open your popup blocker may be blocking the parts catalog.  In this case please turn off the popup blocker, or right-click on the image below and click to open a link.


OMC Sail Drives and Sea Drives Parts Catalog

Please note: These catalogs are in .pfd you will need adobe reader, please click here to get it.

« of 2 »

Find Model or Serial of
your OMC/Stern Drive.

Older OMC Sterndrives
Model & Serial Numbers

OMC Sterndrives after 1980
Model & Serial Numbers


Find the year of your OMC/Bombardier motor.
You will need your model, usually located on the mounting bracket.

OMC YEAR (Bombardier)
Spark plug chart for OMC/(Bombardier)


Find the year of your Viking/Eaton’s motor.
Usually located on the mounting bracket.

Viking/Eaton’s YEAR 2009 Edition
Viking/Eaton’s YEAR 2007 Edition


Find the year of your Mercruiser inboard/out boat motor.
Usually located on a tag on the carburetor cover.

MERCRUISER YEAR


Find the year of your Mercury outboard motor.
Usually located on the top of the mounting bracket.

Mercury YEAR

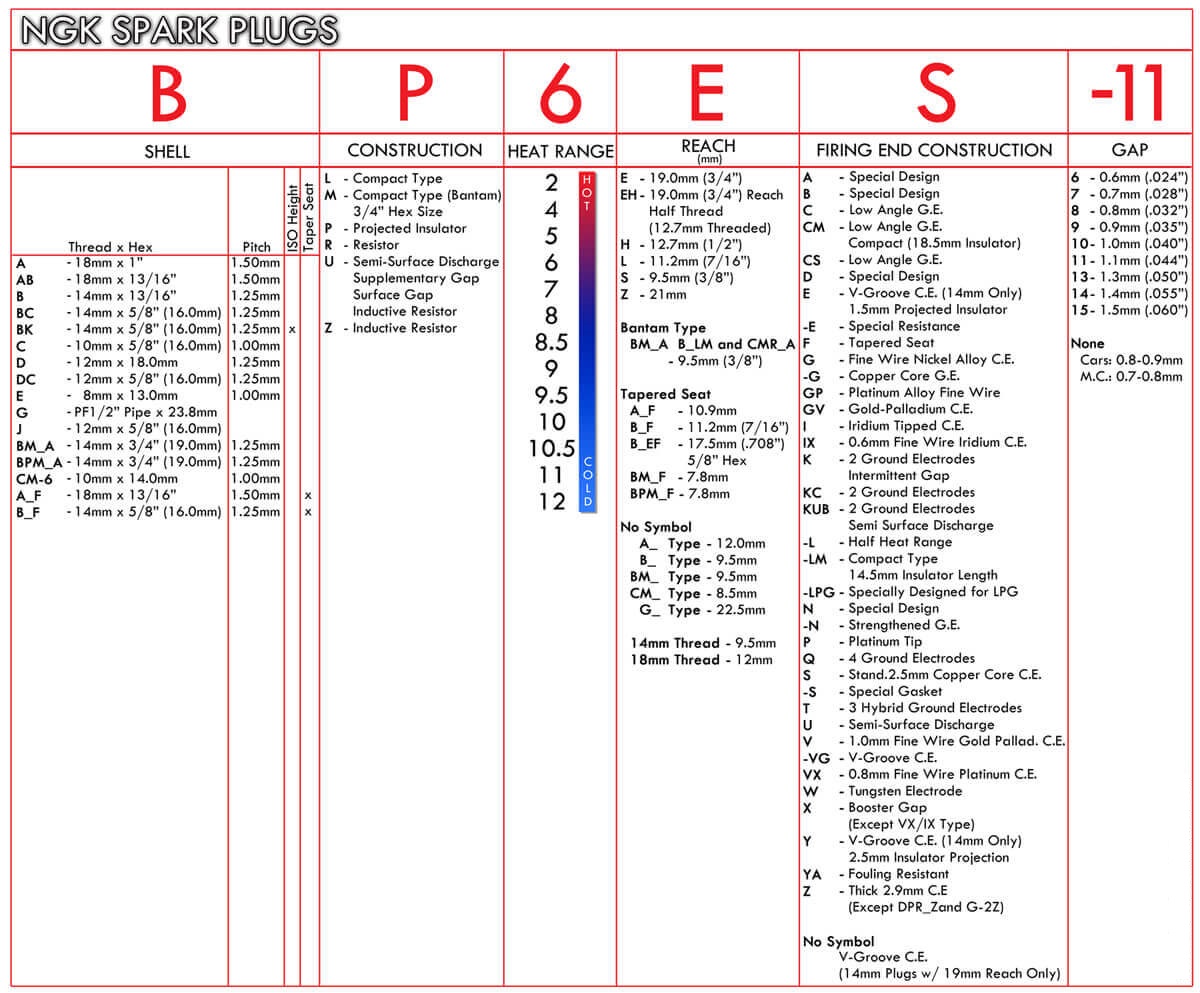

NGK Spark Plug Numbering Systems

Numbers and letters on an NGK spark plug, wondering what they all mean?

Here are NGK spark plug charts that explain how NGK’s numbering system works.


Suzuki Outboard Model Identification

Model Description HP Model Variation Length Year
DT = 2-Stroke
DF = 4-Stroke
PU = Jet Drive
Examples
9.9
40
115
250
C = Oil injection
E = Electric Start, Tiller Control
G = Counter Rotation
H = Power Trim & Tilt w/ Elect. Start w/Tiller Handle
= Manual Start, Tiller Control
N = High thrust or sail model available in 8 and 9.9 hp
QH = Tiller Control with gas assisted tilt (some DF25/30/40/50)
R = Remote Control, Electric start
S = High performance 150 HP with EFI (designed for bass boats)
SF = Super Four
SS = Super six (150 HP only) with PTT, oil injection, remote control / Super Sport for DF250
T= Trim & tilt, Remote Control, Electric Start (tilt only with remote & electric on DT40TC prior to 1994)
TH = Tiller Control with PTT (some DT55/65, DF60/70)
V = 200 HP Exante model with Comlink, PTT, oil injection, remote control
Z = Counter Rotation
S = 15″
L = 20″
X = 25″
XX = 30″
Note: G or Z after the length indicates counter rotation
D = 1983
E = 1984
F = 1985
G = 1986
H = 1987
J = 1988
K = 1989
L = 1990
M = 1991
N = 1992
P = 1993
R = 1994
S = 1995
T = 1996
V = 1997
W = 1998
X = 1999
Y = 2000
K1 = 2001
K2 = 2002
K3 = 2003
K4 = 2004
K5 = 2005
K6 = 2006
K7 = 2007
K8 = 2008
K9 = 2009
L0 = 2010
L1 = 2011
Example Model: DT40CRSN
DT 40 CR S N
2-Cycle 40HP Oil Injection, Elect. Start w/Remote Control 15″ 1992

Yamaha Outboard Model Identification

Model Description HP Trim & Tilt/Starting Method Shaft Length Control Method Year Special Model Variation Code (Used on 25HP engines)
B = Inshore series
C = C series model
CV = C series
D = Twin rotating propellers
DX = Twin rotating propellers OX66EFI
E = Enduro series model
F = Four stroke engine model
LF = Left hand four stroke
L = Left hand engine model
LX = Left hand OX66EFI
LZ = Left hand HPDI
P = Pro series model
PX = Pro series OX66 EFI
S = Saltwater series model
SX = Saltwater series OX66EFI
T = Four stroke engine with high thrust
V = V max series model
VX = V max OX66 EFI
VZ = V max HPDI
Z = HPDI series
Examples
6
9.9
200
250
T = Power tilt or trim (1984-1990)
P =
Power tilt with electric start
E =
Electric start (1984-1990)
M =
Manual tilt with manual start
S = 15″
L =
20″
X =
25″
U =
30″
R = Remote
H =
Tiller handle
J =
Jet drive unit
N = 1984
K = 1985
J = 1986
H = 1987
G = 1988
F = 1989
D = 1990
P = 1991
Q = 1992
R = 1993
S = 1994
T = 1995
U = 1996
V = 1997
W = 1998
X = 1999
Y = 2000
Z = 2001
A = 2002
B = 2003
C = 2004
D = 2005
2 = 3 Cyl. 1997
3 =
3 Cyl.
Starting in April 2005 (2006 Model Year and newer) Yamaha no longer designated model years at the end of the model number identification. Begining at this time any subsequent “new model” will have a letter designation between the Horsepower and the Control/Tilt Method.
Example:
VZ300TLRD =
2005    VZ300TLR = New modle after April 2005      VZ300BTLR= Newer Model and direct replacement for previous models.
EXAMPLE: SX150TLRY – Saltwater EFI, 150 HP, Trim & Tilt w/electric start, 20″, Remote control, 2000 model
